產品應用：

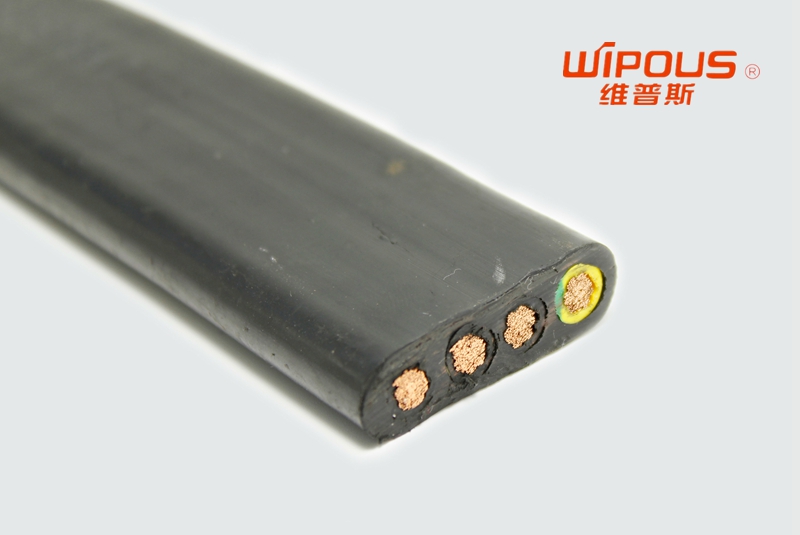

喬浦B-HRMC電纜適用于重型工業中電源和控制系統中的電氣連接。用于特殊機械應力場合，如行車起重機，重型運輸機械，集裝箱吊機等適合移動收起放開安裝。適合移動安裝及固定安裝。電纜外觀扁平型，節省安裝空間。
| 型號 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| B-HRMC-0.75-4C | 4*0.75 | 4.2*12.6 | 90.0 |
| B-HRMC-0.75-8C | 8*0.75 | 4.2*23.2 | 175.0 |
| B-HRMC-0.75-12C | 12*0.75 | 4.2*33.8 | 260.0 |
| B-HRMC-0.75-18C | 18*0.75 | 4.2*50.2 | 380.0 |
| B-HRMC-0.75-24C | 24*0.75 | 4.2*65.6 | 490.0 |
| B-HRMC-1.0-4C | 4*1.0 | 4.4*13.4 | 105.0 |
| B-HRMC-1.0-5C | 5*1.0 | 4.4*15.5 | 120.0 |
| B-HRMC-1.0-8C | 8*1.0 | 4.4*24.8 | 205.0 |
| B-HRMC-1.0-12C | 12*1.0 | 4.4*36.2 | 300.0 |
| B-HRMC-1.0-18C | 18**1.0 | 4.4*53.8 | 460.0 |
| B-HRMC-1.0-24C | 24*1.0 | 4.4*70.4 | 595.0 |
| B-HRMC-1.5-4C | 4*1.5 | 5.1*14.8 | 168.0 |
| B-HRMC-1.5-5C | 5*1.5 | 5.1*18.1 | 187.0 |
| B-HRMC-1.5-7C | 7*1.5 | 5.1*24.0 | 219.0 |
| B-HRMC-1.5-8C | 8*1.5 | 5.1*27.2 | 268.0 |
| B-HRMC-1.5-10C | 10*1.5 | 5.1*34.0 | 322.0 |
| B-HRMC-1.5-12C | 12*1.5 | 5.1*39.3 | 394.0 |
| B-HRMC-1.5-18C | 18*1.5 | 5.1*61.4 | 666.0 |
| B-HRMC-1.5-24C | 24*1.5 | 4.2*82.0 | 789.0 |
| B-HRMC-2.5-4C | 4*2.5 | 5.8*18.0 | 204.0 |
| B-HRMC-2.5-5C | 5*2.5 | 5.8*12.7 | 260.0 |
| B-HRMC-2.5-7C | 7*2.5 | 5.8*21.5 | 345.0 |
| B-HRMC-2.5-8C | 8*2.5 | 5.8*30.7 | 389.0 |
| B-HRMC-2.5-10C | 10*2.5 | 5.8*32.5 | 490.0 |
| B-HRMC-2.5-12C | 12*2.5 | 5.8*41.4 | 590.0 |
| B-HRMC-2.5-24C | 24*2.5 | 5.8*48.3 | 1170.0 |
| B-HRMC-4-4C | 4*4 | 7*21.0 | 322.0 |
| B-HRMC-4-5C | 5*4 | 7*26.8 | 400.0 |
| B-HRMC-4-7C | 7*4 | 7*36.0 | 540.0 |
| B-HRMC-6-4C | 4*6 | 8*23.2 | 433.0 |
| B-HRMC-6-5C | 5*6 | 8*31.4 | 560.0 |
| B-HRMC-6-7C | 7*6 | 8*42.8 | 765.0 |
| B-HRMC-10-4C | 4*10 | 9.6*29.2 | 722.0 |
| B-HRMC-10-5C | 5*10 | 9.6*38.5 | 1120.0 |
| B-HRMC-16-4C | 4*16 | 11*35.0 | 965.0 |
| B-HRMC-16-5C | 5*16 | 12*45.0 | 1290.0 |
| B-HRMC-35-4C | 4*35 | 16.9*48.2 | 2000.0 |
| B-HRMC-50-4C | 4*50 | 17.9*58.0 | 2890.0 |
| B-HRMC-70-4C | 4*70 | 20*63.6 | 3850.0 |
