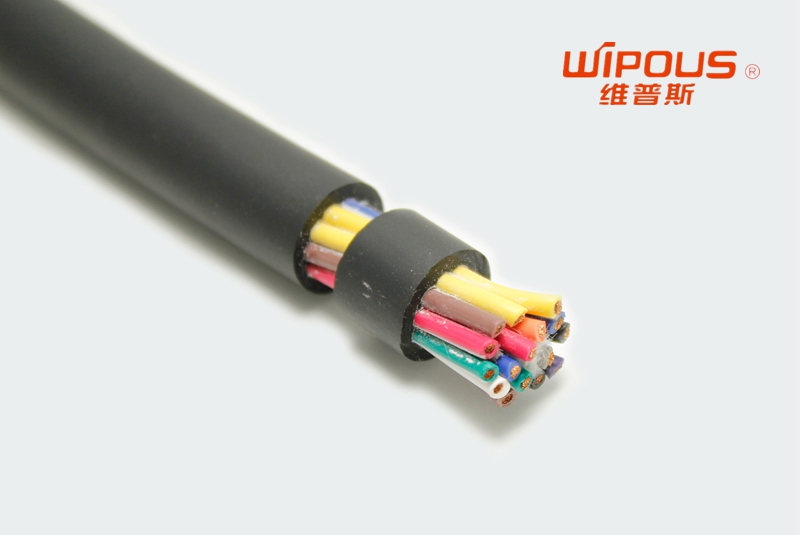

超細銅絲導體
增加柔性填充
超柔性混合PVC護套
柔性PVC絕緣
產品應用：
喬浦G-HRMC高柔性非屏蔽數據拖鏈電纜具有UL&cUL和CE認證可通用于北美和歐洲市場。專門用于電子控制設備，機床等機械設備等移動的拖鏈系統中的數據及信號傳輸。特別適用于工業環境中，干燥或者潮濕的室內，該線纜如果要在室外露天安裝，必須做好防紫外線防護。該線纜具有良好的柔軟性，適合頻繁彎曲。護套采用耐油特種PVC，使線纜具有良好的耐油腐蝕性能，并防止拖鏈中電纜間的相互粘連。當外部有電磁干擾時推薦使用帶屏蔽線纜G-HRMCS系列產品。
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| G-HRMC-26AWG-2C | 2*26AWG | 2*0.14 | 4.2 | 22.5 |
| G-HRMC-26AWG-3C | 3*26AWG | 3*0.14 | 4.4 | 25.4 |
| G-HRMC-26AWG-4C | 4*26AWG | 4*0.14 | 4.7 | 29.5 |
| G-HRMC-26AWG-5C | 5*26AWG | 5*0.14 | 5.1 | 34.0 |
| G-HRMC-26AWG-6C | 6*26AWG | 6*0.14 | 5.4 | 38.5 |
| G-HRMC-26AWG-7C | 7*26AWG | 7*0.14 | 5.4 | 41.5 |
| G-HRMC-26AWG-8C | 8*26AWG | 8*0.14 | 5.8 | 46.0 |
| G-HRMC-26AWG-9C | 9*26AWG | 9*0.14 | 6.3 | 51.6 |
| G-HRMC-26AWG-16C | 10*26AWG | 10*0.14 | 6.7 | 57.5 |
| G-HRMC-26AWG-12C | 12*26AWG | 12*0.14 | 6.9 | 63.5 |
| G-HRMC-26AWG-14C | 14*26AWG | 14*0.14 | 7.3 | 70.6 |
| G-HRMC-26AWG-16C | 16*26AWG | 16*0.14 | 7.6 | 78.0 |
| G-HRMC-26AWG-18C | 18*26AWG | 18*0.14 | 8.0 | 85.5 |
| G-HRMC-26AWG-20C | 20*26AWG | 20*0.14 | 8.2 | 91.6 |
| G-HRMC-26AWG-21C | 21*26AWG | 21*0.14 | 8.4 | 96.1 |
| G-HRMC-26AWG-24C | 24*26AWG | 24*0.14 | 9.4 | 110.1 |
| G-HRMC-26AWG-25C | 25*26AWG | 25*0.14 | 9.6 | 114.5 |
| G-HRMC-26AWG-27C | 27*26AWG | 27*0.14 | 9.6 | 119.2 |
| G-HRMC-26AWG-36C | 30*26AWG | 30*0.14 | 10.0 | 130.5 |
| G-HRMC-26AWG-32C | 32*26AWG | 32*0.14 | 10.5 | 140.9 |
| G-HRMC-26AWG-36C | 36*26AWG | 36*0.14 | 10.9 | 156.4 |
| G-HRMC-24AWG-2C | 2*24AWG | 2*0.25 | 4.4 | 26.2 |
| G-HRMC-24AWG-3C | 3*24AWG | 3*0.25 | 4.6 | 30.0 |
| G-HRMC-24AWG-4C | 4*24AWG | 4*0.25 | 5.0 | 35.2 |
| G-HRMC-24AWG-5C | 5*24AWG | 5*0.25 | 5.4 | 40.7 |
| G-HRMC-24AWG-6C | 6*24AWG | 6*0.25 | 5.8 | 46.4 |
| G-HRMC-24AWG-7C | 7*24AWG | 7*0.25 | 5.8 | 50.3 |
| G-HRMC-24AWG-8C | 8*24AWG | 8*0.25 | 6.2 | 56.0 |
| G-HRMC-24AWG-9C | 9*24AWG | 9*0.25 | 6.8 | 62.9 |
| G-HRMC-24AWG-10C | 10*24AWG | 10*0.25 | 7.2 | 70.2 |
| G-HRMC-24AWG-12C | 12*24AWG | 12*0.25 | 7.4 | 78.1 |
| G-HRMC-24AWG-14C | 14*24AWG | 14*0.25 | 7.8 | 87.3 |
| G-HRMC-24AWG-16C | 16*24AWG | 16*0.25 | 8.2 | 96.7 |
| G-HRMC-24AWG-18C | 18*24AWG | 18*0.25 | 8.6 | 106.3 |
| G-HRMC-24AWG-20C | 20*24AWG | 20*0.25 | 8.9 | 114.4 |
| G-HRMC-24AWG-21C | 21*24AWG | 21*0.25 | 9.1 | 120.0 |
| G-HRMC-24AWG-24C | 24*24AWG | 24*0.25 | 10.3 | 139.9 |
| G-HRMC-24AWG-25C | 25*24AWG | 25*0.25 | 10.5 | 146.6 |
| G-HRMC-24AWG-27C | 27*24AWG | 27*0.25 | 10.5 | 153.0 |
| G-HRMC-24AWG-30C | 30*24AWG | 30*0.25 | 11.0 | 168.1 |
| G-HRMC-24AWG-32C | 32*24AWG | 32*0.25 | 11.5 | 181.3 |
| G-HRMC-24AWG-36C | 36*24AWG | 36*0.25 | 12.0 | 201.4 |
| G-HRMC-22AWG-2C | 2*22AWG | 2*0.34 | 4.7 | 31.1 |
| G-HRMC-22AWG-3C | 3*22AWG | 3*0.34 | 4.9 | 36.1 |
| G-HRMC-22AWG-4C | 4*22AWG | 4*0.34 | 5.4 | 42.9 |
| G-HRMC-22AWG-5C | 5*22AWG | 5*0.34 | 5.8 | 50.0 |
| G-HRMC-22AWG-6C | 6*22AWG | 6*0.34 | 6.3 | 57.3 |
| G-HRMC-22AWG-7C | 7*22AWG | 7*0.34 | 6.3 | 62.6 |
| G-HRMC-22AWG-8C | 8*22AWG | 8*0.34 | 6.7 | 69.8 |
| G-HRMC-22AWG-9C | 9*22AWG | 9*0.34 | 7.4 | 78.5 |
| G-HRMC-22AWG-10C | 10*22AWG | 10*0.34 | 7.8 | 87.8 |
| G-HRMC-22AWG-12C | 12*22AWG | 12*0.34 | 8.1 | 98.4 |
| G-HRMC-22AWG-14C | 14*22AWG | 14*0.34 | 8.5 | 110.4 |
| G-HRMC-22AWG-16C | 16*22AWG | 16*0.34 | 8.9 | 122.9 |
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| G-HRMC-22AWG-18C | 18*22AWG | 18*0.34 | 9.4 | 135.4 |
| G-HRMC-22AWG-20C | 20*22AWG | 20*0.34 | 9.7 | 146.2 |
| G-HRMC-22AWG-21C | 21*22AWG | 21*0.34 | 9.9 | 154.8 |
| G-HRMC-22AWG-24C | 24*22AWG | 24*0.34 | 11.2 | 183.3 |
| G-HRMC-22AWG-25C | 25*22AWG | 25*0.34 | 11.5 | 192.1 |
| G-HRMC-22AWG-27C | 27*22AWG | 27*0.34 | 11.5 | 200.9 |
| G-HRMC-22AWG-30C | 30*22AWG | 30*0.34 | 12.0 | 220.9 |
| G-HRMC-22AWG-32C | 32*22AWG | 32*0.34 | 12.6 | 238.1 |
| G-HRMC-22AWG-36C | 36*22AWG | 36*0.34 | 13.1 | 264.7 |
| G-HRMC-20AWG-2C | 2*20AWG | 2*0.5 | 5.0 | 38.3 |
| G-HRMC-20AWG-3C | 3*20AWG | 3*0.5 | 5.3 | 45.2 |
| G-HRMC-20AWG-4C | 4*20AWG | 4*0.5 | 5.7 | 54.2 |
| G-HRMC-20AWG-5C | 5*20AWG | 5*0.5 | 6.2 | 63.7 |
| G-HRMC-20AWG-6C | 6*20AWG | 6*0.5 | 6.7 | 73.4 |
| G-HRMC-20AWG-7C | 7*20AWG | 7*0.5 | 6.7 | 80.8 |
| G-HRMC-20AWG-8C | 8*20AWG | 8*0.5 | 7.3 | 90.5 |
| G-HRMC-20AWG-9C | 9*20AWG | 9*0.5 | 8.0 | 101.9 |
| G-HRMC-20AWG-10C | 10*20AWG | 10*0.5 | 8.5 | 114.0 |
| G-HRMC-20AWG-12C | 12*20AWG | 12*0.5 | 8.8 | 128.7 |
| G-HRMC-20AWG-14C | 14*20AWG | 14*0.5 | 9.3 | 145.2 |
| G-HRMC-20AWG-16C | 16*20AWG | 16*0.5 | 9.9 | 163.2 |
| G-HRMC-20AWG-18C | 18*20AWG | 18*0.5 | 10.5 | 183.0 |
| G-HRMC-20AWG-20C | 20*20AWG | 20*0.5 | 10.8 | 199.4 |
| G-HRMC-20AWG-21C | 21*20AWG | 21*0.5 | 11.1 | 210.6 |
| G-HRMC-20AWG-24C | 24*20AWG | 24*0.5 | 12.6 | 248.8 |
| G-HRMC-20AWG-25C | 25*20AWG | 25*0.5 | 12.9 | 260.6 |
| G-HRMC-20AWG-27C | 27*20AWG | 27*0.5 | 12.9 | 273.2 |
| G-HRMC-20AWG-30C | 30*20AWG | 30*0.5 | 13.5 | 300.6 |
| G-HRMC-20AWG-32C | 32*20AWG | 32*0.5 | 14.1 | 323.7 |
| G-HRMC-20AWG-36C | 36*20AWG | 36*0.5 | 14.7 | 360.3 |
| G-HRMC-18AWG-2C | 2*18AWG | 2*1.0 | 5.5 | 50.4 |
| G-HRMC-18AWG-3C | 3*18AWG | 3*1.0 | 5.9 | 60.8 |
| G-HRMC-18AWG-4C | 4*18AWG | 4*1.0 | 6.4 | 73.8 |
| G-HRMC-18AWG-5C | 5*18AWG | 5*1.0 | 7.0 | 87.4 |
| G-HRMC-18AWG-6C | 6*18AWG | 6*1.0 | 7.6 | 101.3 |
| G-HRMC-18AWG-7C | 7*18AWG | 7*1.0 | 7.6 | 112.5 |
| G-HRMC-18AWG-8C | 8*18AWG | 8*1.0 | 8.2 | 126.3 |
| G-HRMC-18AWG-9C | 9*18AWG | 9*1.0 | 9.0 | 142.4 |
| G-HRMC-18AWG-10C | 10*18AWG | 10*1.0 | 9.7 | 160.1 |
| G-HRMC-18AWG-12C | 12*18AWG | 12*1.0 | 10.1 | 183.7 |
| G-HRMC-18AWG-14C | 14*18AWG | 14*1.0 | 10.7 | 210.7 |
| G-HRMC-18AWG-16C | 16*18AWG | 16*1.0 | 11.4 | 238.9 |
| G-HRMC-18AWG-18C | 18*18AWG | 18*1.0 | 12.2 | 267.9 |
| G-HRMC-18AWG-20C | 20*18AWG | 20*1.0 | 12.6 | 292.5 |
| G-HRMC-18AWG-21C | 21*18AWG | 21*1.0 | 12.9 | 308.8 |
| G-HRMC-18AWG-24C | 24*18AWG | 24*1.0 | 14.6 | 363.7 |
| G-HRMC-18AWG-25C | 25*18AWG | 25*1.0 | 15.0 | 380.8 |
| G-HRMC-18AWG-27C | 27*18AWG | 27*1.0 | 15.0 | 400.2 |
| G-HRMC-18AWG-30C | 30*18AWG | 30*1.0 | 15.6 | 440.8 |
| G-HRMC-18AWG-32C | 32*18AWG | 32*1.0 | 16.3 | 474.3 |
| G-HRMC-18AWG-36C | 36*18AWG | 36*1.0 | 17.1 | 528.3 |
| G-HRMC-16AWG-2C | 2*16AWG | 2*1.5 | 6.6 | 80.8 |
| G-HRMC-16AWG-3C | 3*16AWG | 3*1.5 | 7.2 | 99.2 |
| G-HRMC-16AWG-4C | 4*16AWG | 4*1.5 | 7.9 | 118.2 |
