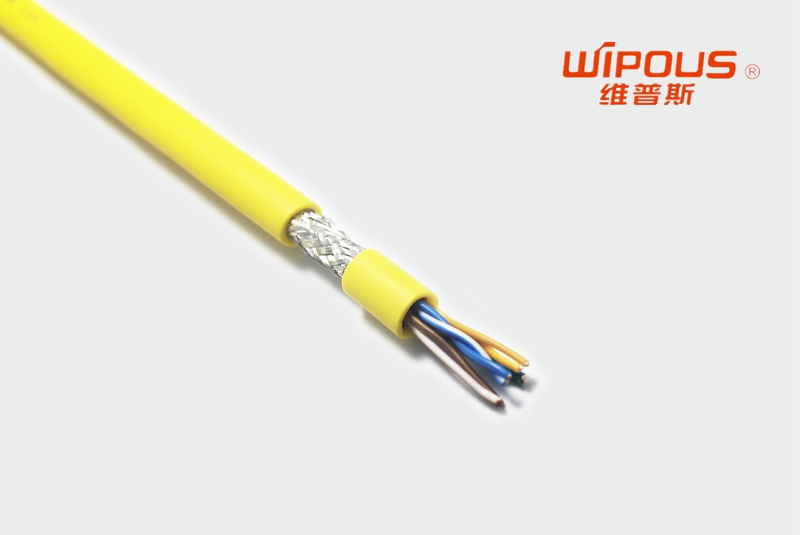

超細銅絲導體
柔性PVC絕緣
進口柔性PUR護套
鍍錫銅絲編織屏蔽
產品應用：
喬浦G-HPMCSP 300V屏蔽對絞信號電纜專門用于電子控制設備，機床等機械設備等移動的拖鏈系統中的數據及信號傳輸。特別適用于工業環境中，干燥或者潮濕的室內室外露天移動安裝。PUR外護套使此款電纜適用于極其苛刻的工業環境和有腐蝕性冷卻劑和潤滑油場合，具有極好的耐油性，抗磨損性，抗微生物，抗水解，抗化學腐蝕，抗紫外線，保護電纜不受機械應力的損害。芯線對絞，大幅降低線纜內部芯線之間的電磁干擾。鍍錫銅編織屏蔽使線纜具有較強的抗電磁干擾能力，保證數據及信號的穩定傳輸?？捎糜谕湘溝到y(tǒng)中，適合頻繁彎曲。
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| G-HPMCSP-26AWG-2P | 2*2*26AWG | 2*2*0.14 | 5.9 | 41.0 |
| G-HPMCSP-26AWG-3P | 3*2*26AWG | 3*2*0.14 | 6.0 | 50.0 |
| G-HPMCSP-26AWG-4P | 4*2*26AWG | 4*2*0.14 | 6.5 | 56.0 |
| G-HPMCSP-26AWG-5P | 5*2*26AWG | 5*2*0.14 | 6.9 | 73.0 |
| G-HPMCSP-26AWG-6P | 6*2*26AWG | 6*2*0.14 | 7.3 | 87.0 |
| G-HPMCSP-26AWG-10P | 10*2*26AWG | 10*2*0.14 | 9.0 | 115.0 |
| G-HPMCSP-26AWG-12P | 12*2*26AWG | 12*2*0.14 | 9.3 | 145.0 |
| G-HPMCSP-26AWG-14P | 14*2*26AWG | 14*2*0.14 | 9.8 | 151.0 |
| G-HPMCSP-26AWG-16P | 16*2*26AWG | 16*2*0.14 | 10.4 | 158.0 |
| G-HPMCSP-26AWG-20P | 20*2*26AWG | 20*2*0.14 | 11.5 | 188.0 |
| G-HPMCSP-26AWG-25P | 25*2*26AWG | 25*2*0.14 | 12.9 | 241.0 |
| G-HPMCSP-26AWG-30P | 30*2*26AWG | 30*2*0.14 | 13.5 | 275.0 |
| G-HPMCSP-24AWG-2P | 2*2*24AWG | 2*2*0.25 | 7.3 | 56.0 |
| G-HPMCSP-24AWG-3P | 3*2*24AWG | 3*2*0.25 | 7.5 | 68.0 |
| G-HPMCSP-24AWG-4P | 4*2*24AWG | 4*2*0.25 | 7.9 | 85.0 |
| G-HPMCSP-24AWG-6P | 6*2*24AWG | 6*2*0.25 | 8.8 | 120.0 |
| G-HPMCSP-24AWG-8P | 8*2*24AWG | 8*2*0.25 | 10.6 | 135.0 |
| G-HPMCSP-24AWG-10P | 10*2*24AWG | 10*2*0.25 | 11.4 | 162.0 |
| G-HPMCSP-24AWG-12P | 12*2*24AWG | 12*2*0.25 | 11.8 | 196.0 |
| G-HPMCSP-24AWG-16P | 16*2*24AWG | 16*2*0.25 | 12.8 | 243.0 |
| G-HPMCSP-24AWG-25P | 25*2*24AWG | 25*2*0.25 | 16.5 | 347.0 |
| G-HPMCSP-20AWG-2P | 2*2*20AWG | 2*2*0.5 | 8.9 | 96.0 |
| G-HPMCSP-20AWG-3P | 3*2*20AWG | 3*2*0.5 | 9.0 | 132.0 |
| G-HPMCSP-20AWG-4P | 4*2*20AWG | 4*2*0.5 | 9.7 | 150.0 |
| G-HPMCSP-20AWG-5P | 6*2*20AWG | 6*2*0.5 | 11.5 | 205.0 |
| G-HPMCSP-20AWG-8P | 8*2*20AWG | 8*2*0.5 | 13.5 | 265.0 |
| G-HPMCSP-20AWG-12P | 12*2*20AWG | 12*2*0.5 | 15.2 | 361.0 |
| G-HPMCSP-20AWG-16P | 16*2*20AWG | 16*2*0.5 | 16.9 | 463.0 |
| G-HPMCSP-18AWG-2P | 2*2*18AWG | 2*2*0.75 | 9.6 | 109.0 |
| G-HPMCSP-18AWG-3P | 3*2*18AWG | 3*2*0.75 | 9.7 | 143.0 |
| G-HPMCSP-18AWG-4P | 4*2*18AWG | 4*2*0.75 | 11.0 | 182.0 |
| G-HPMCSP-18AWG-5P | 5*2*18AWG | 5*2*0.75 | 11.4 | 220.0 |
| G-HPMCSP-18AWG-6P | 6*2*18AWG | 6*2*0.75 | 12.5 | 252.0 |
| G-HPMCSP-18AWG-8P | 8*2*18AWG | 8*2*0.75 | 15.2 | 310.0 |
| G-HPMCSP-18AWG-12P | 12*2*18AWG | 12*2*0.75 | 16.6 | 465.0 |
